Maxillofacial Surgical Sets: Comprehensive Surgeon's Guide, Technical Specs & Compliance Standards

Equipping an Oral & Maxillofacial Surgery (OMFS) operating room requires balancing absolute procedural precision with long-term instrument durability. Whether configuring a high-volume hospital suite or expanding a private clinic, choosing the correct Maxillofacial (MXF) Surgical Instrument Set directly impacts surgical speed, tissue preservation, and post-operative patient outcomes.

Maxillofacial procedures span a wide range of complexity, from simple oral bone grafting to full craniofacial fracture reconstruction and orthognathic alignment. To help clinical managers and surgeons optimize their procurement, this guide breaks down essential instrument requirements across six core MXF surgical specialties.

MXF Set Specifications & Materials

The table below summarizes the core hardware, material standards, and compliance requirements for each MXF surgical specialty:

Procedure-Specific Instrument Breakdown

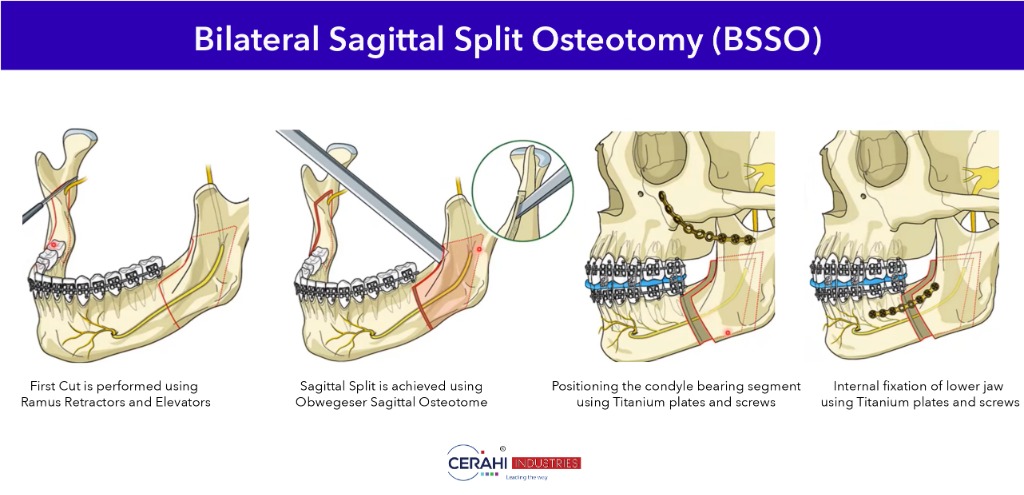

1. Bilateral Sagittal Split Osteotomy (BSSO)

BSSO is the gold-standard surgical technique for correcting severe mandibular misalignments, including retrognathia (severe overbite) and prognathia (severe underbite). Because surgeons longitudinally split the mandible along both sides, nerve-sparing retractors and controlled bone separators are critical.

• Ramus & Channel Retractors: Obwegeser and Hargis Ramus Retractors feature notched V-tips designed to hook securely around the ascending ramus, shielding the cheek and soft tissue during osteotomy.
• Inferior Border Strippers: Specialized Hargis J-Strippers sweep along the lower mandibular margin to elevate muscle attachments cleanly without tearing tissue.
• BSSO Bone Splitters: Smith Superior Ramus Separators gently pry open the inner (medial) and outer (lateral) cortices without crushing bone tissue.
• Elevators: A Periosteal Elevator with a fiber handle is used to lift and separate the gums and underlying fibrous tissue (the mucoperiosteal flap) cleanly away from the jawbone.

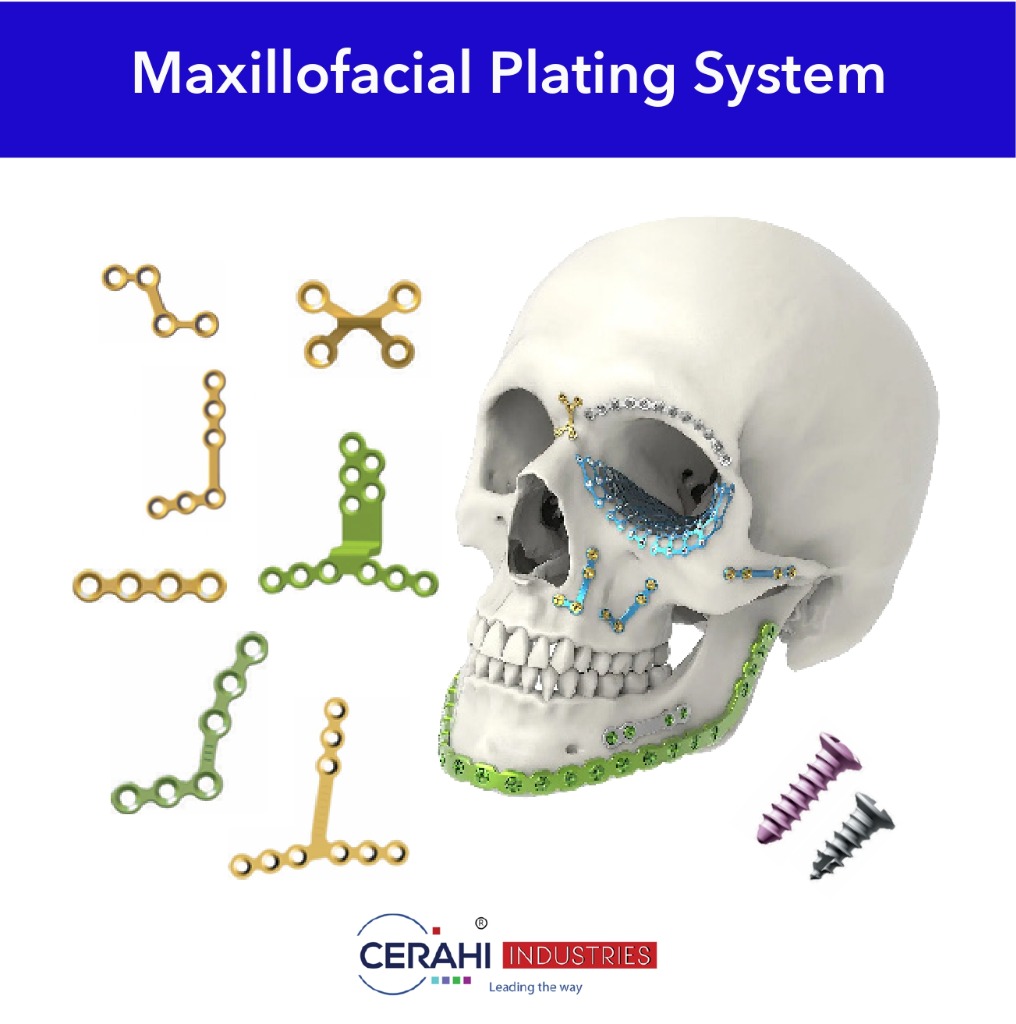

• Fixation & Mobilization: Monocortical mini-screws paired with pre-contoured Titanium L-Plates hold the repositioned jaw completely rigid for osteointegration.

2. Le Fort I Osteotomy (Upper Jaw / Midface Alignment)

The workhorse procedure for midface advancement and vertical maxillary corrections. The upper jaw (maxilla) is detached horizontally from the skull base, requiring specialized disimpaction tools to mobilize the bone safely.

• Rowe Maxillary Disimpaction Forceps: Heavy-duty, dual-action forceps engineered to exert balanced downward pressure to "down-fracture" and mobilize the maxilla.
• Tessier & West Lacrimal Chisels: Curved, ultra-sharp osteotomes engineered to split the delicate pterygomaxillary junction safely near orbital margins.
• Pre-Bent Mini-Plates (0.6T): Ultra-low profile 3D-fabricated plates for secure maxillary re-attachment.

3. Genioplasty (Chin Repositioning)

Chin osteotomies alter the symphysis to adjust chin height, projection, or symmetry. Because space is restricted, retractors must protect the mental nerve bundle.

• Dingman Retractors: Ergonomically curved to hook below the inferior border of the chin, lifting soft tissue and protecting the mental nerve.
• Specialized Fixation: Pre-angled T-Shape, L-Shape, and U-Shaped Titanium Chin Plates provide rigid alignment following horizontal bone cuts.

4. Facial Trauma & Acute Fracture Repair

Emergency and elective repair of complex facial trauma — including motor vehicle accidents and sports injuries — demands high-versatility fixation and reduction tools.

• Bone Reduction Clamps: Pointed holding forceps that grip, align, and maintain bone fragment tension during screw fixation.
• Plate Bending Pliers & Wire Cutters: Heavy-duty contours designed for 2.0mm and 2.4mm structural load-bearing plates.
• Micro-Plate Systems (1.0mm / 1.3mm): Ultra-delicate titanium mesh, X-plates, and square plates for upper-face and orbital rim restoration.

5. Temporomandibular Joint (TMJ) Surgery

Working within a narrow 1–2 cm surgical corridor adjacent to major facial nerves and carotid arteries requires micro-instrumentation.

• Condylar Elevators & Micro-Dissectors: Low-profile Freer Dissectors allow subtle tissue tunneling without shearing delicate nerve fibers.
• Micro-Osteotomes (3mm to 6mm): Narrow, hand-honed chisels designed for precision condylar reshaping (condylotomy) or removing ankylotic bone masses.

6. Orbital Floor & Socket Reconstruction

Repairing blowout fractures requires protecting delicate ocular muscles and the optic nerve.

• Malleable Orbital Retractors: Satin-finish, bendable steel spatulas designed to gently elevate the eyeball and tissue away from the socket floor.
• Pre-Formed 3D Titanium Orbital Mesh: Anatomically contoured mesh plates that recreate the precise natural geometry of the orbital floor.

Material Excellence: Why Alloy Selection Matters

The harsh mechanical stresses of orthognathic bone cutting and repeated autoclave sterilization demand superior metallurgy:

• German Stainless Steel (ASTM F899): Engineered for cutting instruments, elevators, and retractors. High chromium content resists corrosion, pitting, and structural fatigue through thousands of autoclave cycles (134°C).
• Ti-6Al-4V Grade 5 Titanium: Ideal for mini-plates, bicortical screws, and orbital mesh. Titanium is bio-inert, non-magnetic (MRI-compatible), and offers high strength-to-weight ratios for permanent patient internal fixation.

Why Choose the Cerahi Industries 65-Piece Maxillofacial Set?

Instead of sourcing individual pieces across multiple vendors, Cerahi Industries offers a complete, medical-grade 65-Piece Maxillofacial Surgical Instrument Set.

• Complete Procedural Coverage: Includes foundational forcep sets, bone cutters, needle holders, retractors, and elevators designed for general and specialized MXF procedures.
• Custom Engineering Capabilities: Need specialized plate dimensions? We offer 3D-designed, pre-bent custom Le Fort and chin plates tailored to your facility's precise specifications.
• Full Regulatory Compliance: Fully compliant with ISO 13485 quality standards, carrying full CE and FDA documentation for seamless hospital procurement.

Upgrade Your Surgical Capabilities Today

Equip your surgical suites with instruments designed for precision, ergonomics, and long-term durability.

Need a bulk quote for your facility or clinic? Contact our procurement team today to request custom pricing. Looking for detailed dimensions? Download our Full Maxillofacial Surgical Set Catalog to review complete technical specifications.

FAQs

Q1: Can Cerahi Industries customize maxillofacial surgical sets to match our hospital's specific tray preferences?

Yes. While our standard 65-Piece Maxillofacial Surgical Set covers the vast majority of orthognathic, trauma, and reconstructive procedures, we specialize in custom tray configurations. Whether your surgical team requires additional specialized retractors (such as Obwegeser or Dingman), custom-bent 3D titanium Le Fort/chin plates, or specific micro-screw configurations, we can tailor the kit to your exact surgical protocols.

Q2: What quality standards and sterilization guidelines do your maxillofacial instruments follow?

All Cerahi Industries instruments are manufactured from medical-grade ASTM F899 German Surgical Stainless Steel and Grade 5 Titanium (Ti-6Al-4V). Our manufacturing facility is fully ISO 13485 certified, with products carrying CE and FDA clearances. All cutting tools, elevators, and retractors are engineered to resist corrosion and structural degradation through repeated high-temperature autoclave sterilization cycles (up to 134°C / 273°F).
